EV
CONVERSION
CONTROL.VCU+ vehicle control unit and software for EV conversions

VCU+ is a vehicle control unit and Tesla motor controller for EV conversions. It runs Tesla, Cascadia Motion, Nissan Leaf, Dana TM4, and Sevcon Gen5 drive units over CAN with no inverter logic board swap. You calibrate it and update firmware from Bolt on Windows, macOS, or Linux.

SCROLL ↓
TESLA FDU · LDU · SDU · MODEL 3 REAR◆NISSAN LEAF · ZE1◆CASCADIA MOTION · CM / PM◆DANA TM4◆SEVCON GEN5 · TURNTIDE◆BMS · ORION / FELLTEN / VERO / DYNAM SATELLITES◆3× CAN · 2× SENT · ETHERNET◆520 MHZ · REAL-TIME OS◆LUA PLUGIN RUNTIME◆SEMA 2025 · BEST EMERGING TECH◆GENERATION 4X4 · MEDIA’S CHOICE◆TESLA FDU · LDU · SDU · MODEL 3 REAR◆NISSAN LEAF · ZE1◆CASCADIA MOTION · CM / PM◆DANA TM4◆SEVCON GEN5 · TURNTIDE◆BMS · ORION / FELLTEN / VERO / DYNAM SATELLITES◆3× CAN · 2× SENT · ETHERNET◆520 MHZ · REAL-TIME OS◆LUA PLUGIN RUNTIME◆SEMA 2025 · BEST EMERGING TECH◆GENERATION 4X4 · MEDIA’S CHOICE◆
/ 01
- Product line

Five products. One system.

VCU+ controls the car. BMS, Bolt, Pulse and Cloud each connect to it.
DL-VCU-0GVCU+Vehicle control unit
In the carDrive unitTesla, Cascadia Motion, Nissan Leaf, Dana TM4, and Sevcon Gen5
DL-BMS-1BetaBMSSatellite battery managementDL-BOLT-2BoltCalibration softwareDynam LinkIn developmentLinkAlways-on telematics unit for CloudDL-PULSE-1BetaPulseCluster and diagnostics appDL-CLOUDBetaCloudPartner fleet console
Fig. 01 · What connects to VCU+, and over what

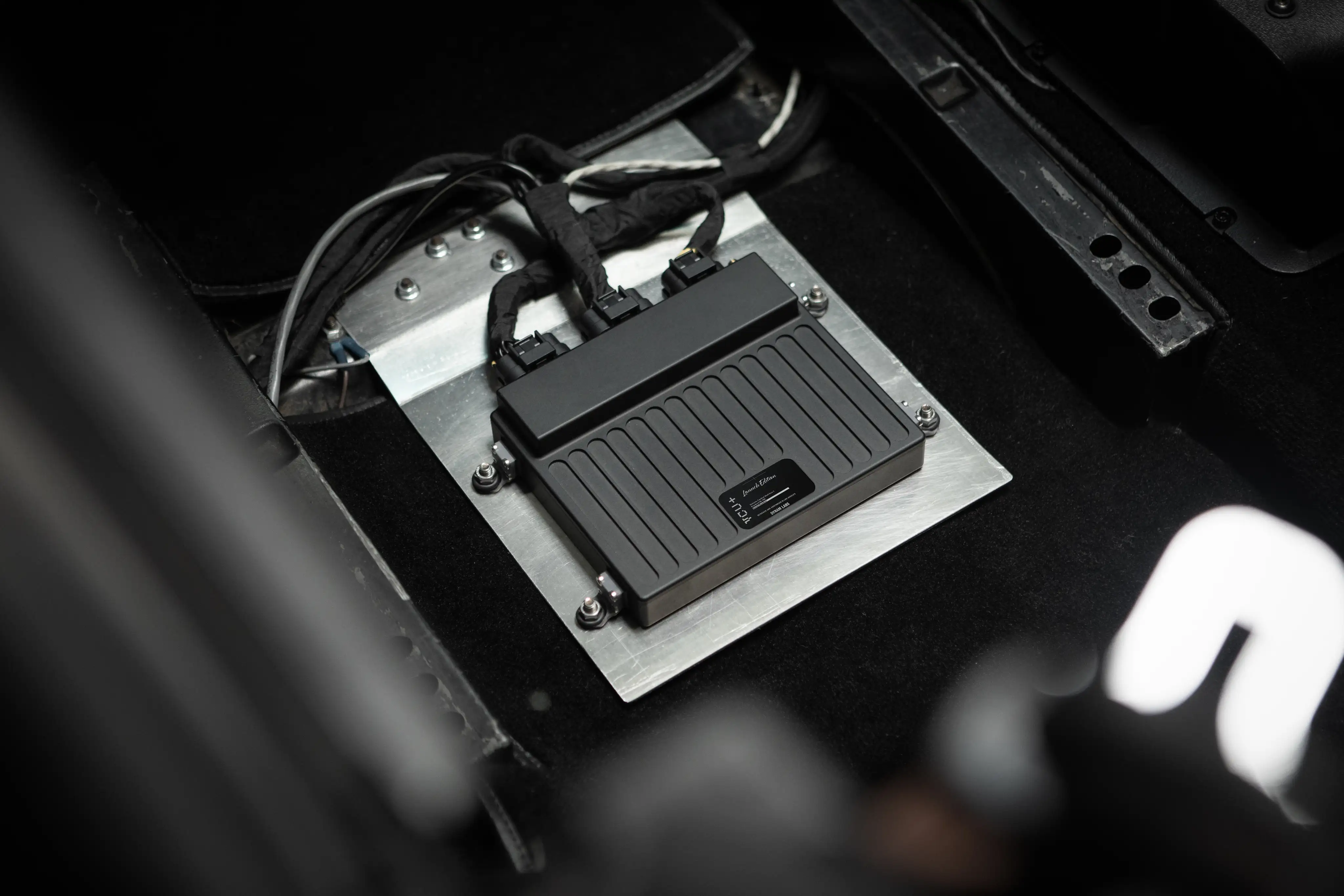

Dynam Labs VCU+ mounted in a vehicle
DL-VCU-0G · HARDWARE
/ 01.A

VCU+

VEHICLE CONTROL UNIT · LAUNCH EDITION

Pair VCU+ with Bolt for live tuning, Dynam BMS for cell-level pack management, and Pulse for the cluster. Then order a unit when you are ready to build.

CPU
520 MHz · real-time OS
CAN
3×
SENT / ETH
2× SENT · 1× Ethernet
GPS
Integrated
BMS MASTER
Included (Beta)
BMS
Dynam master · Orion · Fellten · Vero · plugin
CHARGE
TC 6.6kW · EVCS DCFC · J1772
TEMP INPUTS
4× temperature sensor inputs
DRIVE UNITS
Tesla FDU / LDU / SDU / 3 Rear · Nissan Leaf · Cascadia CM/PM · Dana TM4 · Sevcon Gen5
PLUGINS
Lua - custom logic without firmware changes
DL-BMS-1 · HARDWARE/ 01.BBeta

BMS

SATELLITE BATTERY MANAGEMENT SYSTEM

Dynam BMS turns VCU+ into a full cell-level battery manager. Snap satellites onto the modules and tune the pack in Bolt.

MASTER
VCU+ - no separate BMS box
SATELLITES
Up to 12
MAX CELLS
192
PACK LAYOUTS
Dual-string / parallel packs

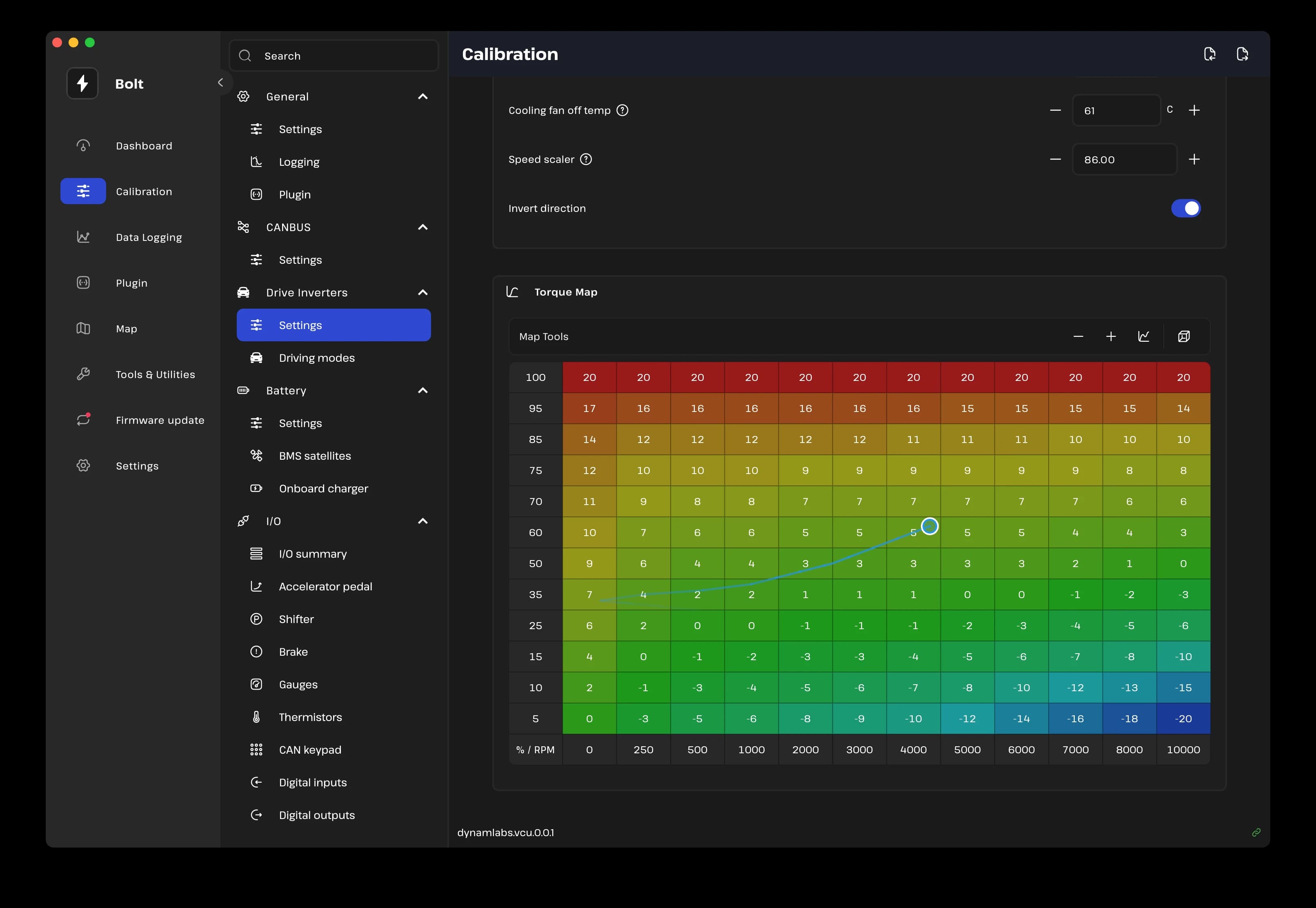

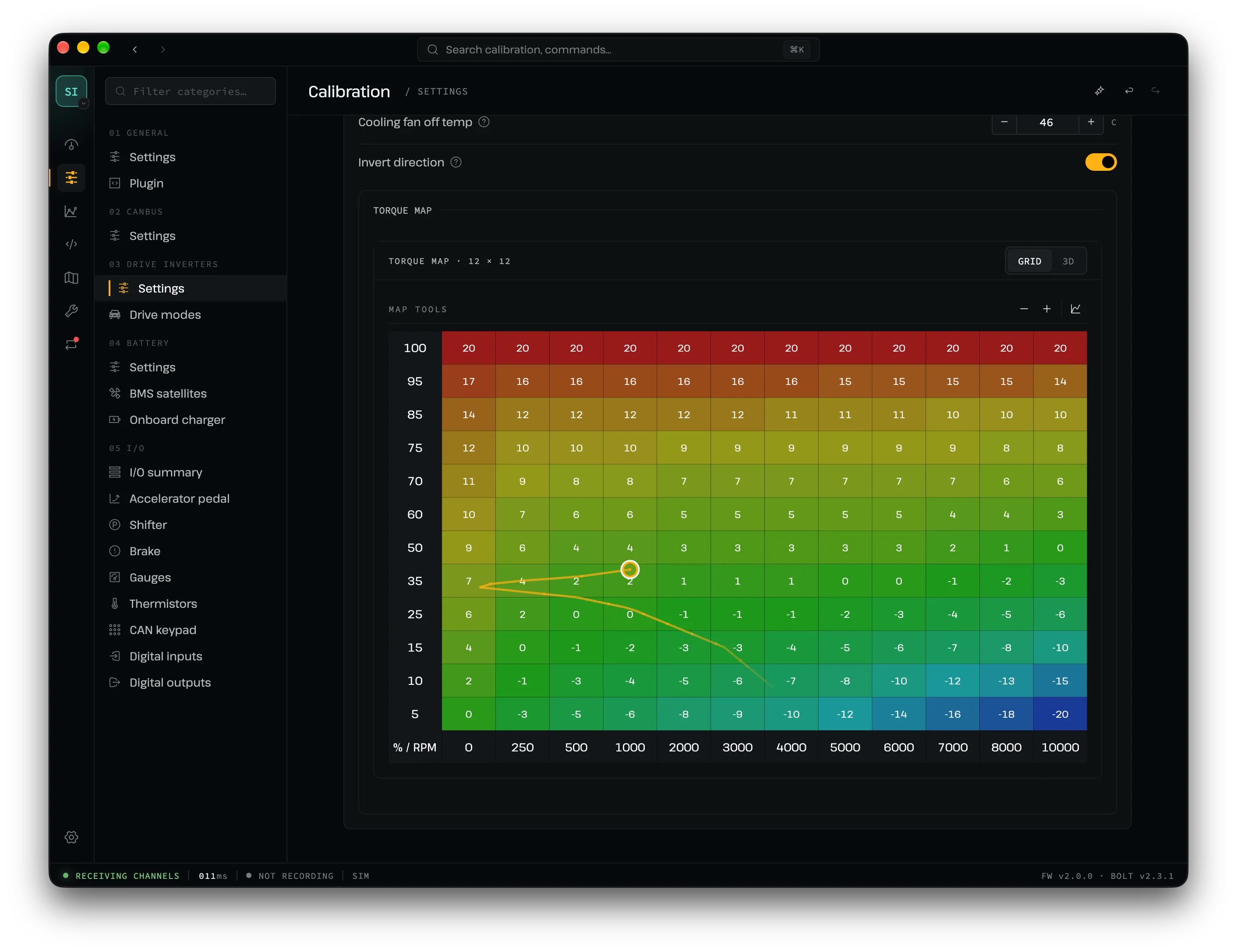

Bolt 2D torque map, a pedal-by-RPM grid with the live operating point
DL-BOLT-2 · SOFTWARE/ 01.C

BOLT

CALIBRATION SOFTWARE

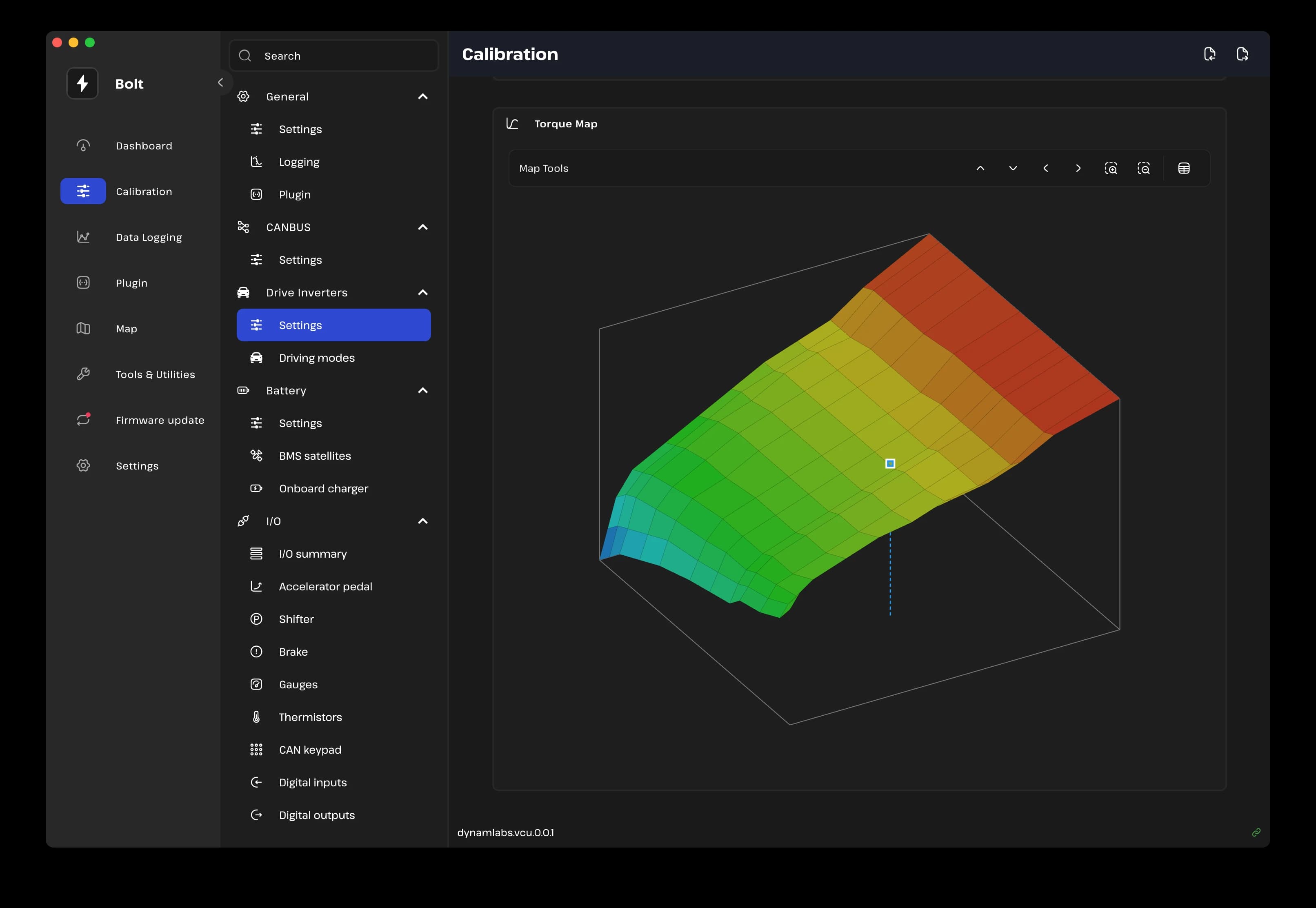

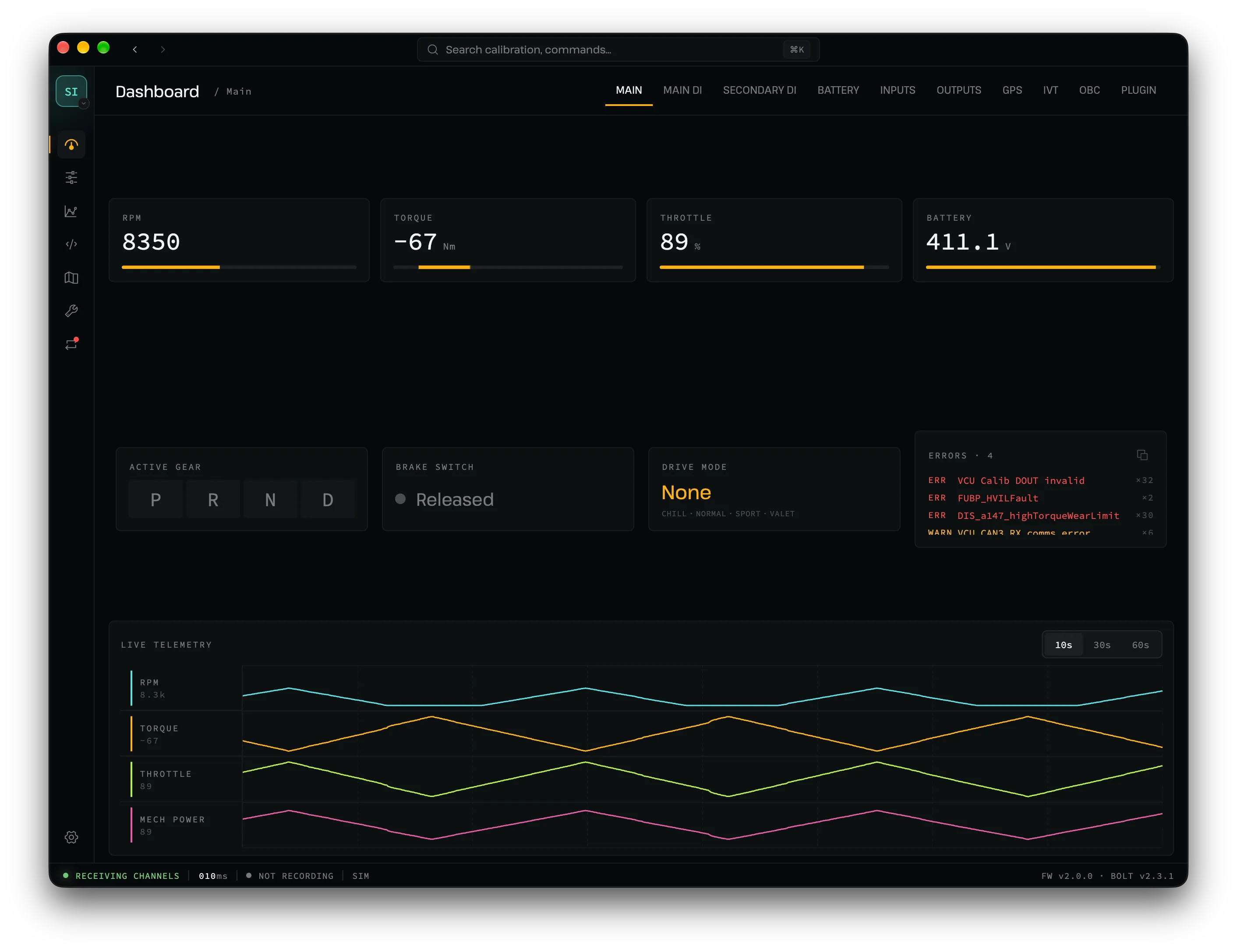

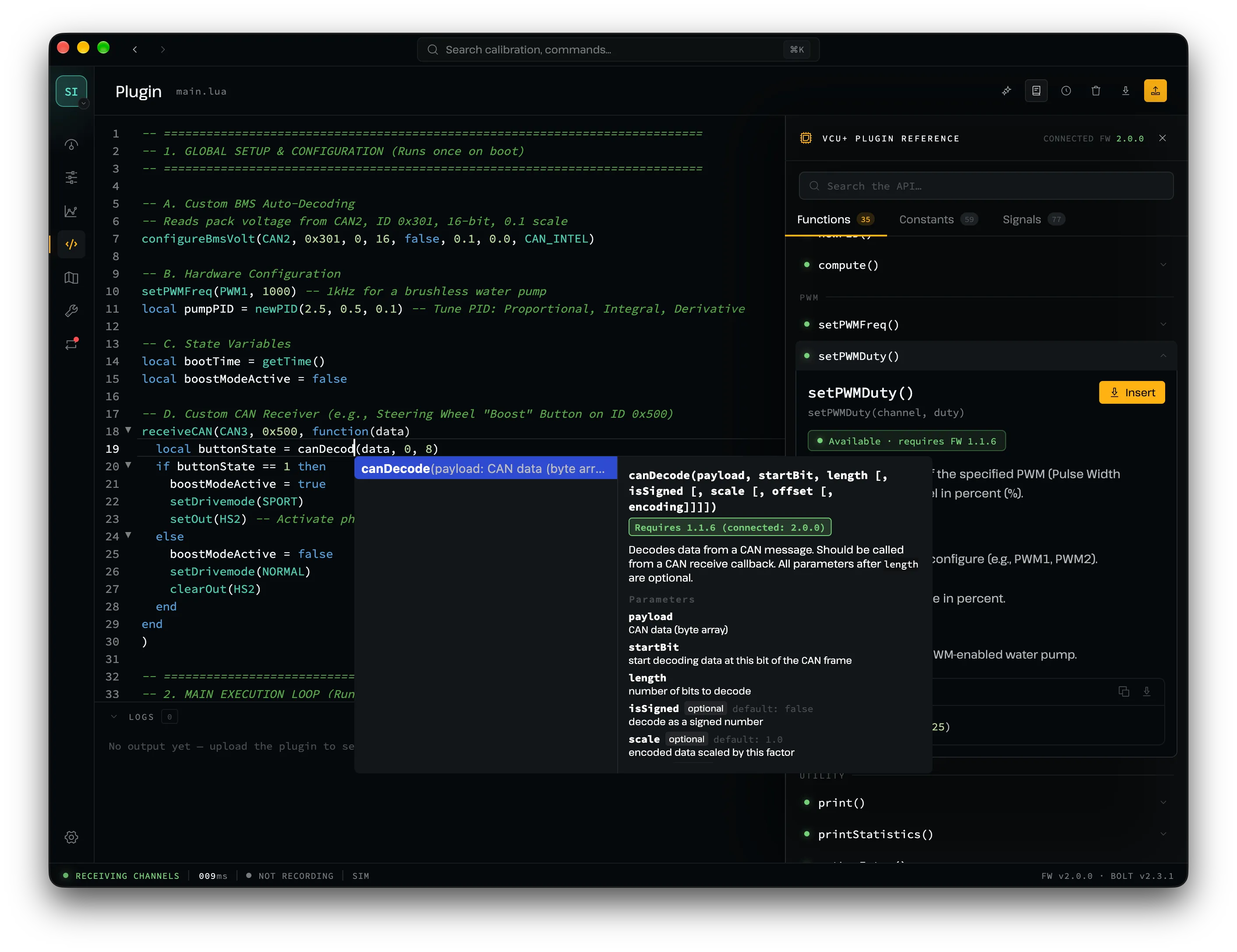

The configuration software for Dynam Labs VCUs. Calibration, live scope, 3D torque maps, data logging, the Lua plugin editor, and one-click firmware are one CMD+K away.

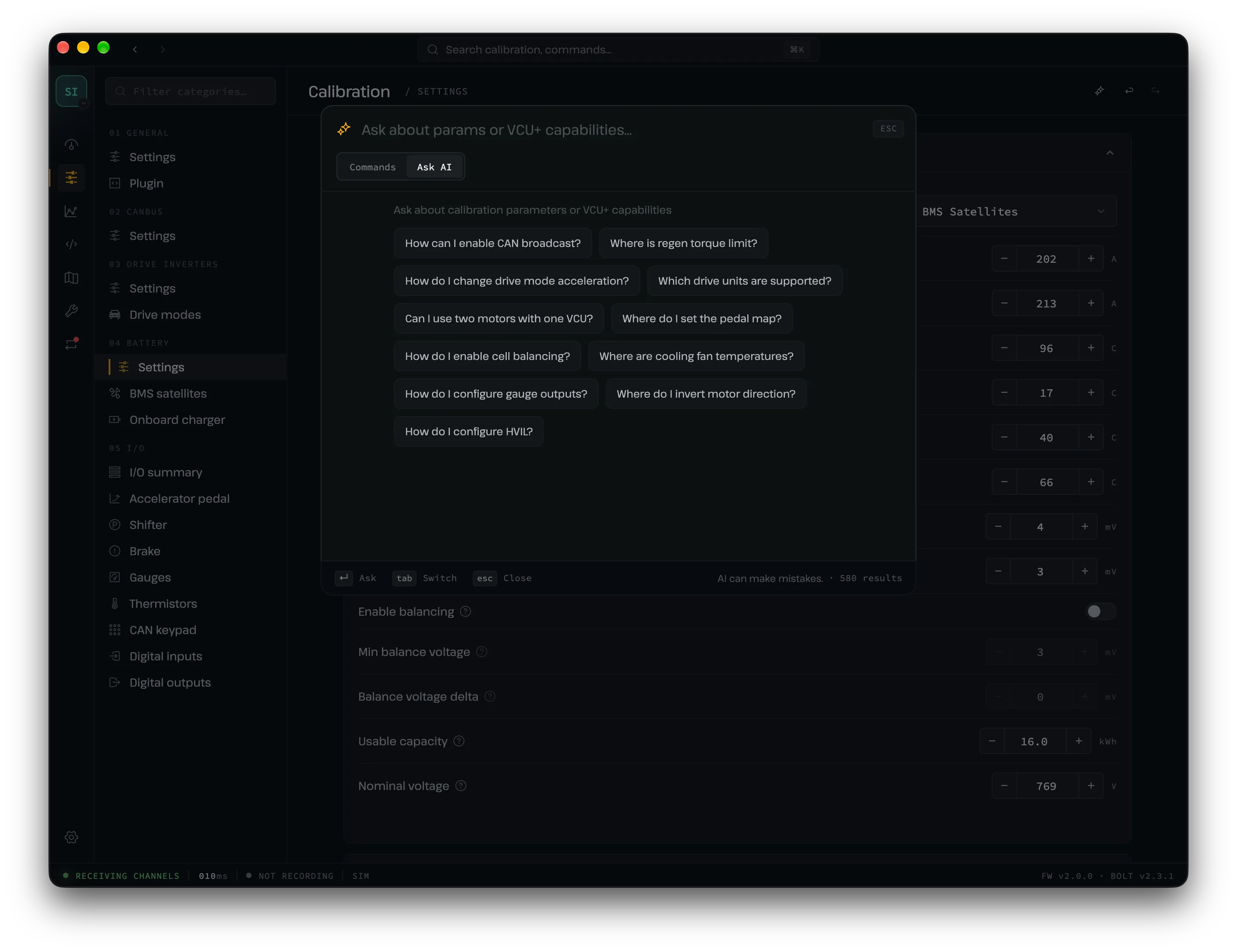

ASK AI
In-app assistant - calibration, Lua, diagnostics
MCP SERVER
Local - Cursor, Claude, VS Code Copilot, Gemini CLI, Codex
CALIBRATION
Drivetrain, I/O, battery - with diff reports
PLATFORMS
Windows · macOS · Linux
Pulse motors page with torque split, lateral g, and a 0-60 time
DL-PULSE-1 · APP/ 01.DBeta

PULSE

CLUSTER · DIAGNOSTICS APP

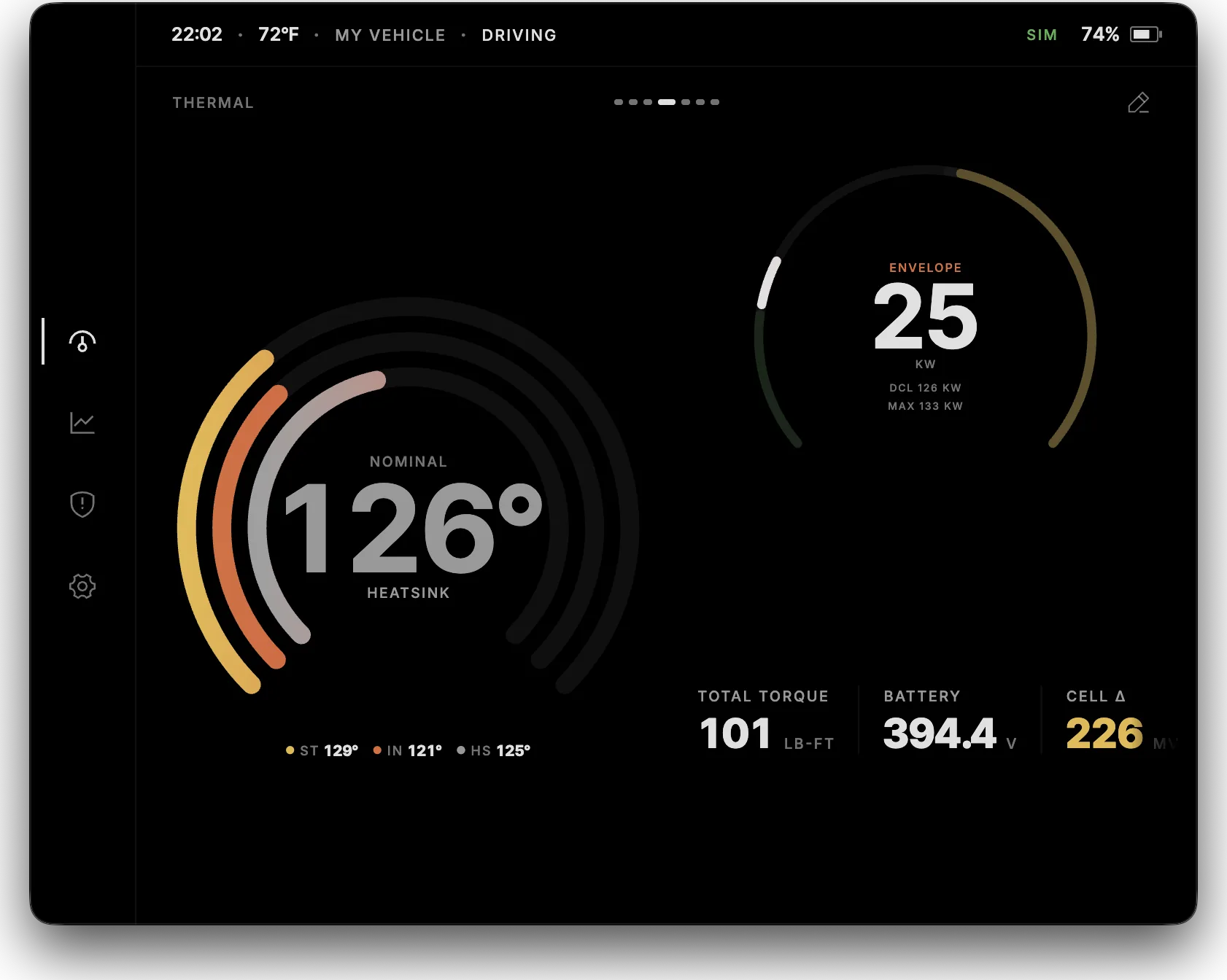

A cluster and diagnostics app for VCU+ powered EV conversions. Runs on the phone, tablet, head unit, or embedded Linux screen you already own. Invite-only beta today.

PLATFORMS
iOS · iPadOS · Android · Embedded Linux
ADAPTERS
MeatPi WiCAN (BLE / Wi-Fi) · CANable USB on Android and Linux
DASHES
Custom clusters and widgets · built with your AI agent
DIAGNOSTICS
Faults, journal, live data, cell voltage and resistance

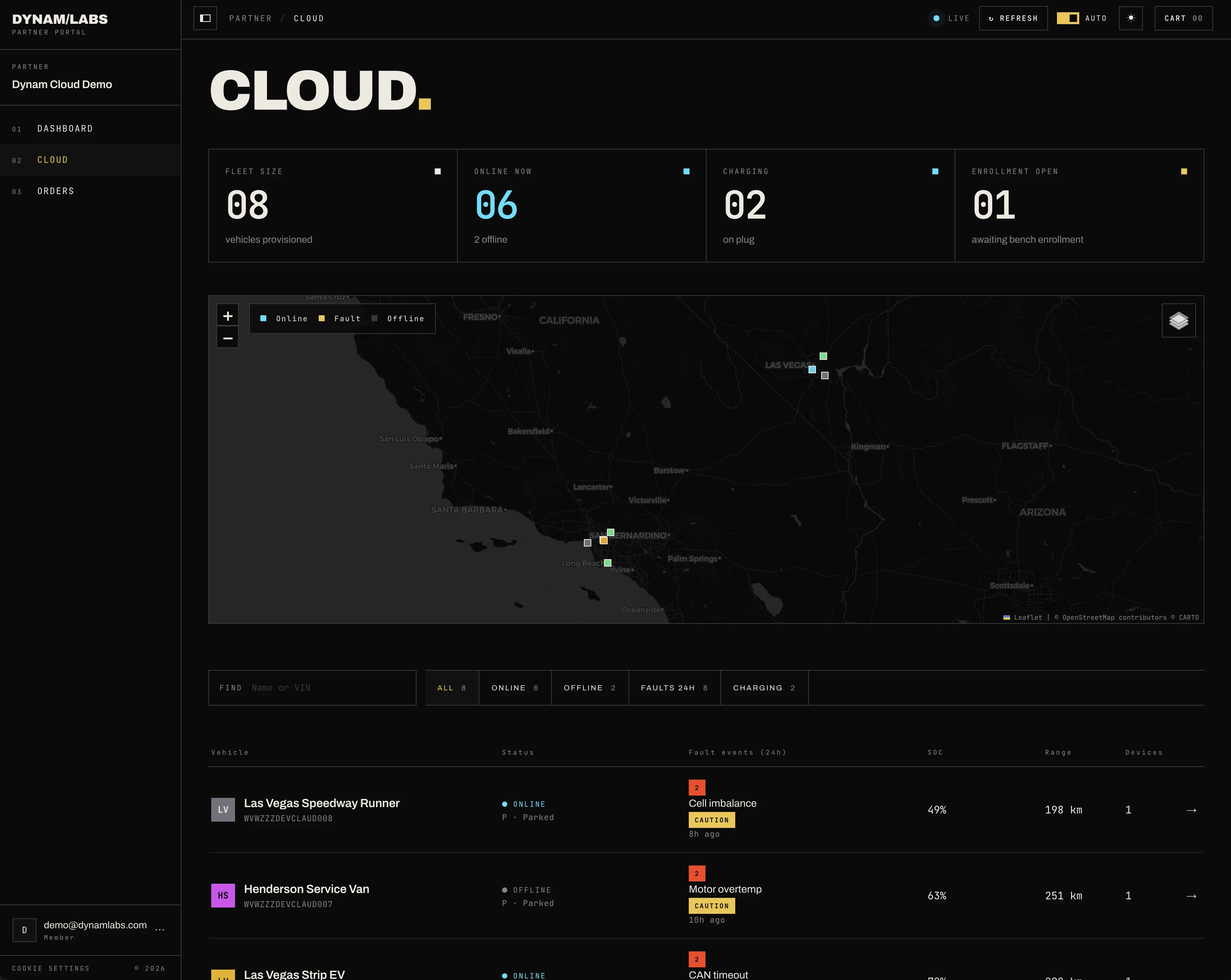

Dynam Cloud fleet view with the map, vehicle counts, and a table of cars and faults
DL-CLOUD · SERVICE/ 01.EBeta

CLOUD

FLEET CONSOLE · PARTNER ONLY

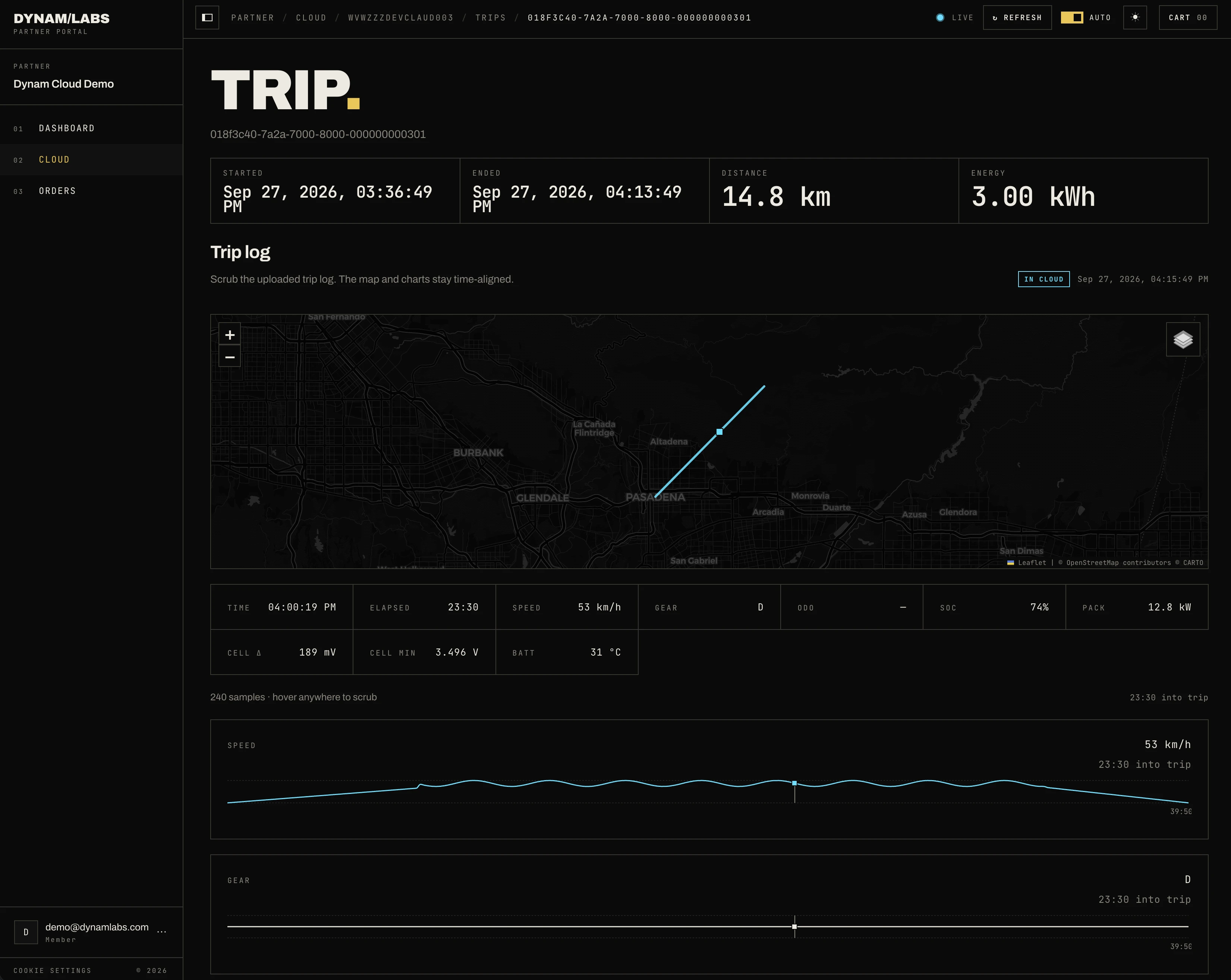

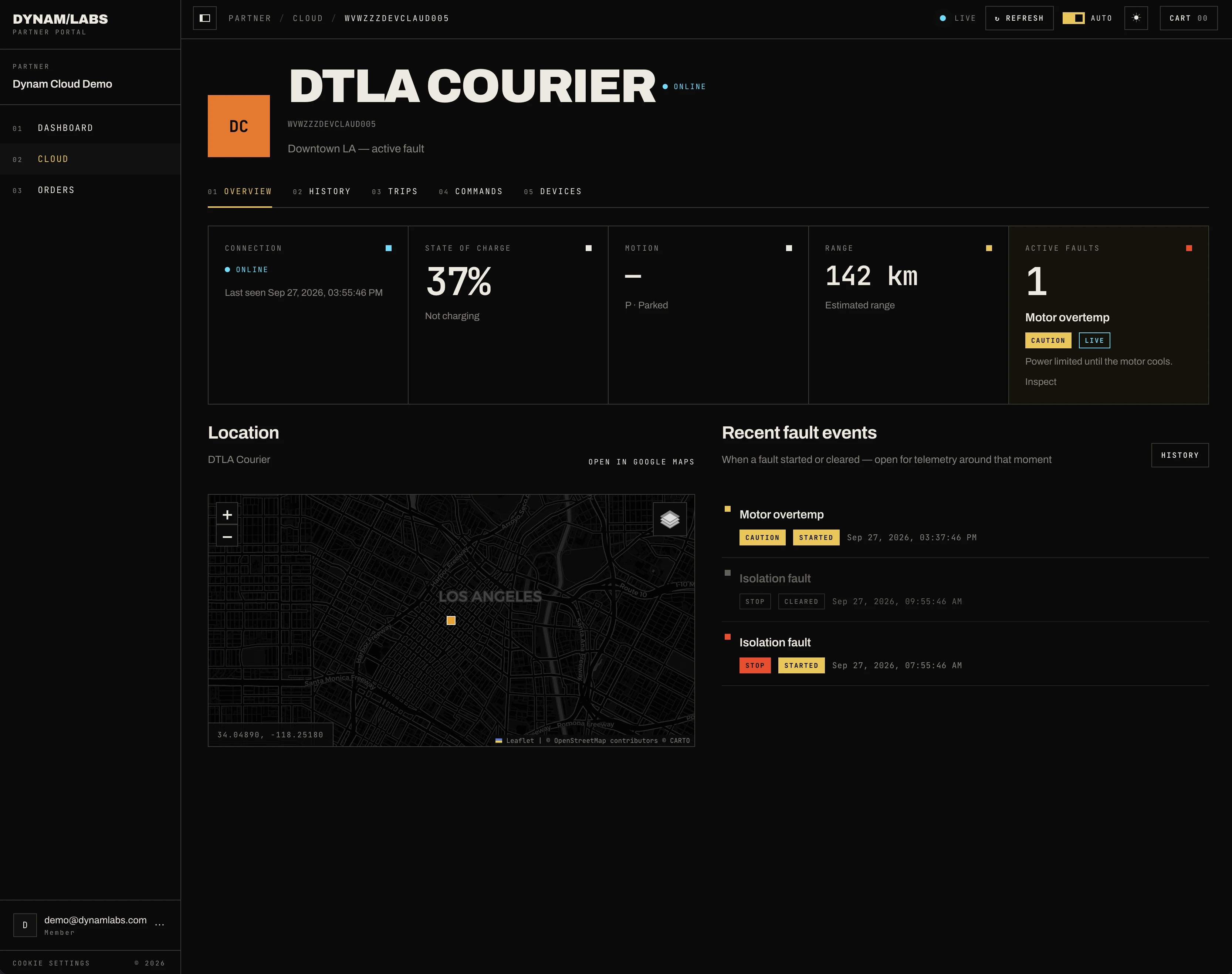

A console for the shops that build these cars. Provision a VIN, enroll it from Pulse, and the car reports state of charge, position and faults back to the shop after it leaves.

ACCESS
Partner shops · invite only
FLEET
Live map, status and faults per vehicle
COMMANDS
Climate, charge port, charge target
SECURITY
Per-device certificate · mTLS · revoke anytime
/ 02
- Partner builds

Cars running VCU+.

EV conversions by Current Electric Vehicles in Los Angeles, Electric Classic Cars in Newtown, Wales, and Magnetomotive EV in Phoenix.
BUILDS AND PHOTOS · CURRENT ELECTRIC VEHICLES, LOS ANGELES · ELECTRIC CLASSIC CARS, NEWTOWN, WALES · MAGNETOMOTIVE EV, PHOENIXSee the partner shops current-la.com (opens in a new tab)electricclassiccars.co.uk (opens in a new tab)magnetomotive-jdm.com (opens in a new tab)
/ 03
- In the media

Covered in the wild.

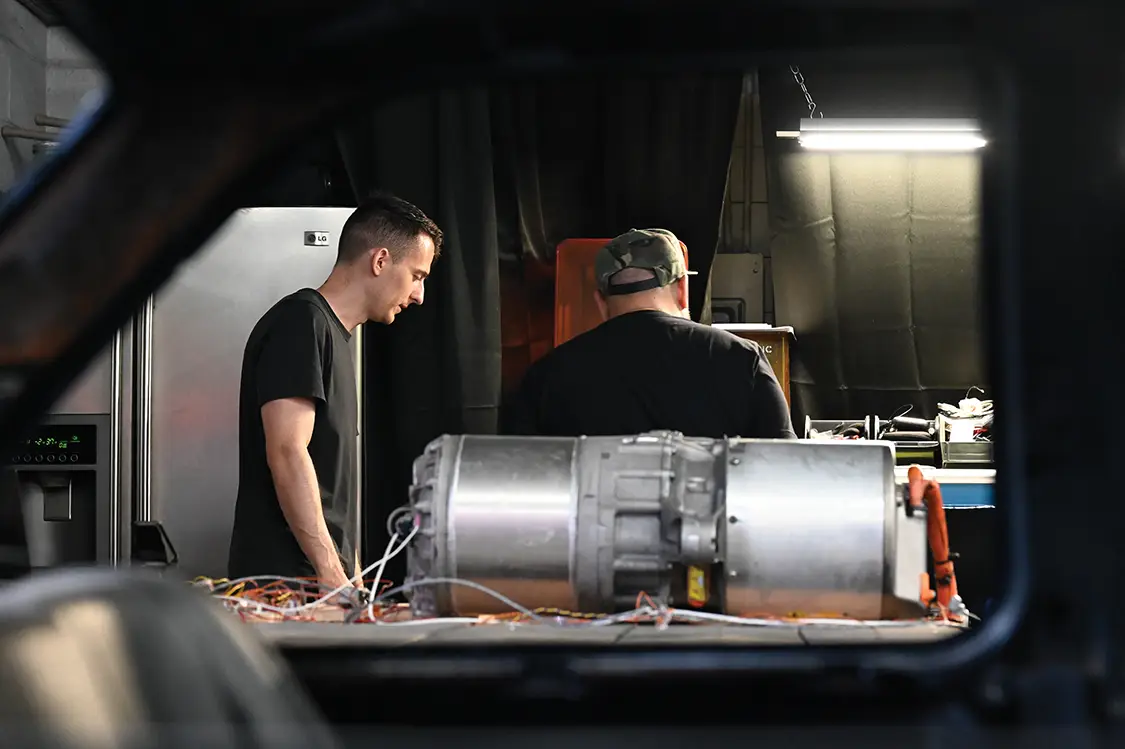

Press features, build videos and SEMA awards for VCU+.
AWARDS & RECOGNITION
A1 · SEMA 2025

Winner: SEMA 2025 New Product Award (Best Emerging Technology)

VCU+ won Best Emerging Technology in the New Product Awards at the 2025 SEMA Show.

View on sema.org
A2 · SEMA 2025

Media’s Choice: Generation 4x4 selection (SEMA 2025)

Editors from enthusiast and trade publications each pick products from the New Products Showcase for the Media’s Choice program. Generation 4x4 picked VCU+.

View on sema.org
/ 04 · PARTNER NETWORK

Shops that install VCU+.

8 partner shops across North America and Europe sell, install, or build with VCU+.

  • Current Electric VehiclesLOS ANGELES, CA
  • Westside EVLOS ANGELES, CA
  • Electric Classic CarsNEWTOWN, WALES
  • Magnetomotive EVPHOENIX, AZ
  • Scotten MotorsPHILADELPHIA, PA
  • Revolt SystemsDENVER, CO
  • West Coast CustomsCORONA, CA
  • North American EVDETROIT, MI
SUB
EML
- DISPATCH / DL-NEWS

Release notes.

Firmware releases, product updates and the occasional shop note. Unsubscribe in one click.

NO SPAM
/ 05 · BUILD WITH US

Tell us what
you're building.

We work with conversion shops, individual builders and resellers. Talk to the engineering team, apply to the partner program, or download the software and look at it first.

Talk to engineering Apply as a partnerDownload software
